ASME B16.9 Buttweld Fittings Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is a renowned Manufacturer & Exporter of Butt Weld Pipe Fittings, which are made from pure SS, carbon steel, Duplex Steel, Super Duplex Steel, alloy steel, nickel-base alloy, Titanium Alloy & Cupro-Nickel Alloy in Mumbai, India. All the Buttweld Pipe Fittings are produced as per the National & International Standards. Our product is used within the business. Handy architects utilize the best quality material and propelled methods to fabricate this product at industry standards.

A Buttweld Pipe Fitting is specially designed in such how in order that it is often welded at its ends to attach different pipes together. By doing so directly, also because the diameter of the pipe may also be changed. Buttweld Pipe Fitting allows branching of pipe. A Buttweld Fittings are Pipe Fittings won’t modification the pathway of a pipeline (elbows), reduce/increase the pipe bore size (reducers, branch tees, cross), or blind a pipeline (butt weld cap). ASME B16.9 Buttweld Fittings are used for piping systems on top of two inches in diameter. Buttweld Pipe Fittings are offered in multiple shapes, dimensions, and material grades. The key specifications for buttweld fittings are the ASME B16.9 and also the MSS-SP 43.

Largest Stockist of ANSI/ASME B16.9 Pipe Fittings, Buttweld Elbow, Cross, Stub End, Equal Tee, Bend, Dish Cap, Collar, Long Stub End, 1D Bend, WP 45 Degree Elbow, 3D Bend, Short Radius Elbow, 90 Degree Elbow, 5d Bend, 180 Deg Bend, Eccentric Reducer, Concentric Reducer, Lateral Tee, Pipe Nipple, Pipe Cap in Mumbai

Most Trusted Exporters of Wrought Austenitic Buttweld Piping Fittings, Welded Pipe Fittings, Seamless Pipe Fittings in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.9 Buttweld Fittings Specifications

Specifications

ASME SA403, SA234, SA420 / ASTM A403, A234, A420

Standards / Dimensions

ASME/ANSI B16.9, MSS-SP-43, ASME B16.28

Size & Thickness

½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS.

ASME B16.9 Buttweld Fittings Specifications
Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type

Seamless, Welded, Fabricated

Forms

Elbow, Tee, Reducer, Cross, Stub End, End Caps, Bend

Leading Manufacturers of Different Types of ASTM A403 Stainless Steel Buttweld Pipe Fittings in the form of 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | Long Radius Ebow (LR Ebow) | Short Radius Elbow (SR Elbow) | 1D Elbow | 3D Elbow/Bend | 5D Elbow/Bend | Equal Tee | Unequal/Reducing Tee | Concentric Reducer | Eccentric Reducer | Equal Cross | Unequal/Reducing Cross | Long Stub End | Short Stub End | Lap Joint Stub End | End Caps | Seamless Fittings | Welded Fittings | 10D Pipe Bend | Long Radius Pipe Bend | Hot Induction Pipe Bend | J Pipe Bend | Mitered Pipe Bend | Piggable Pipe Bend | U Pipe Bend at Best Prices in India.

ASME B16.9 Buttweld Fittings Types

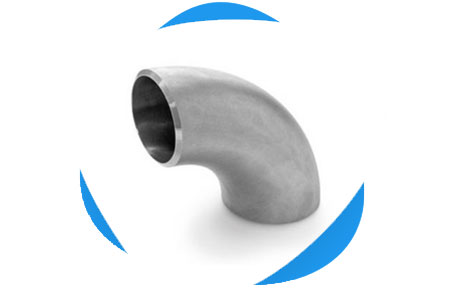

ASME B16.9 Elbow

ANSI B16.9 45° Elbow, ASME B16.9 90° Elbow, 180° Elbow, LR Ebow, SR Elbow, 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow Supplier in Mumbai, India

ASME B16.9 Elbow

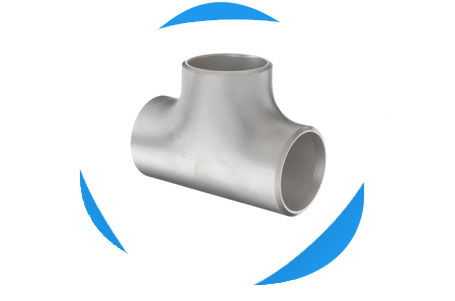

ASME B16.9 Tee

ANSI B16.9 Tee, Equal Tee, Unequal or Reducing Tee Supplier in Mumbai, India

ASME B16.9 Tee

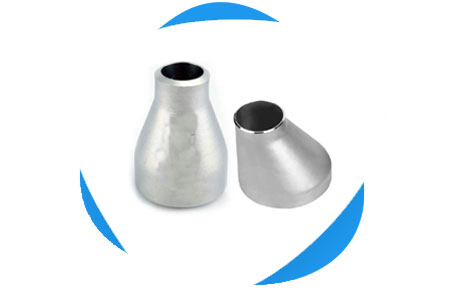

ASME B16.9 Reducer

ANSI B16.9 Reducer, Concentric Reducer, Eccentric Reducer Supplier in Mumbai, India

ASME B16.9 Reducer

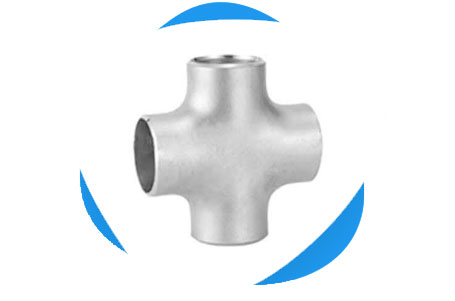

ASME B16.9 Cross

ANSI B16.9 Cross, Equal Cross, Unequal or Reducing Cross Supplier in Mumbai, India

ASME B16.9 Cross

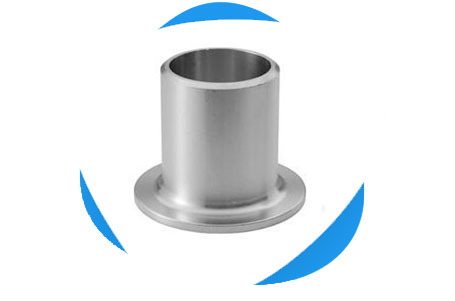

ASME B16.9 Stub Ends

ANSI B16.9 Stub End, Long Stub End, Short Stub End, Lap Joint Stub End Supplier in Mumbai, India

ASME B16.9 Stub Ends

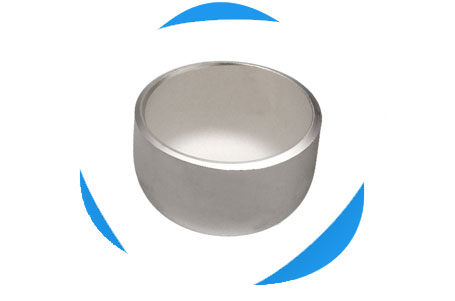

ASME B16.9 End Caps

ANSI B16.9 End Caps, Ball Caps, Oval Caps Supplier in Mumbai, India

ASME B16.9 End Caps

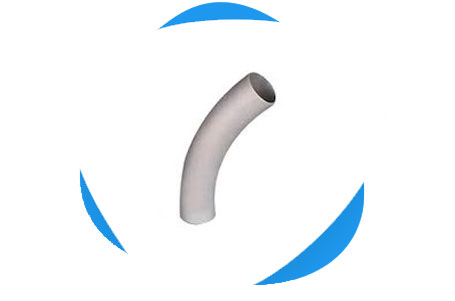

ASME B16.9 Bends

ANSI B16.9 Bend, 10D Bend, Long Radius Bend, Hot Induction Bend, J Bend, Mitered Bend, Piggable Bend, U Bend Supplier in Mumbai, India

ASME B16.9 Bends

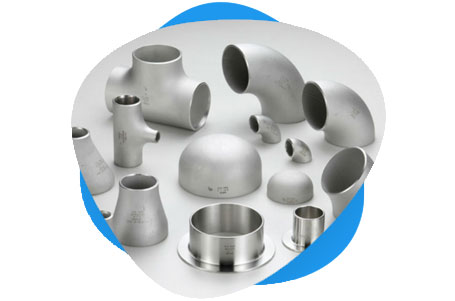

ASME B16.9 Welded & Seamless Pipe Fittings

ANSI B16.9 Seamless Pipe Fittings, ASME B16.9 Welded Pipe Fittings Supplier in Mumbai, India

ASME B16.9 Welded & Seamless Pipe Fittings

ASME B16.9 Buttweld Pipe Fittings Dimensions

Pipe Elbow Nominal Size Pipe Elbow Outside
Diameter Y
Wall Thickness T
(Pipe Elbow Schedule)
45 Deg. Elbow LR Centre to Face B 90 Deg. Elbow LR Weight 45 Deg. Elbow LR
Weight
90 Deg. Elbow LR Centre to Face A 90 Deg. Elbow SR Weight
mm in mm mm Schedule mm kg kg mm kg
15 1/2” 21.3 2.78 STD 15.9 0.08 0.04 38.1
3.73 X.S 15.9 0.10 0.05 38.1
20 3/4” 26.7 2.87 STD 11.1 0.08 0.04 28.6
3.91 X.S 11.1 0.11 0.05 28.6
25 1” 33.4 3.38 STD 22.2 0.15 0.09 38.1 0.11
4.55 X.S 22.2 0.19 0.11 38.1 0.14
32 11/4” 42.2 3.56 STD 25.4 0.28 0.14 47.6 0.18
4.85 X.S 25.4 0.39 0.2 47.6 0.24
40 11/2” 48.3 3.68 STD 28.6 0.4 0.2 57.1 0.26
5.08 X.S 28.6 0.5 0.25 57.1 0.35
50 2” 60.3 3.91 STD 34.9 0.72 0.36 76.2 0.5
5.54 X.S 34.9 1.0 0.5 76.2 0.68
65 21/2” 73.0 5.16 STD 44.4 1.46 0.73 95.2 0.95
7.01 X.S 44.4 1.82 0.91 95.2 1.27
80 3” 88.9 5.49 STD 50.8 2.18 1.1 114.3 1.45
7.62 X.S 50.8 2.86 1.45 114.3 1.95
100 4” 114.3 6.02 STD 63.5 4.2 2.1 152.4 2.8
8.56 X.S 63.5 5.7 2.9 152.4 3.9
125 5” 141.3 6.65 STD 79.4 6.8 3.4 190.0 4.8
9.5 X.S 79.4 10.0 5.0 190.0 6.5
150 6” 168.3 7.11 STD 95.2 10.1 5.1 229.0 6.8
10.97 X.S 95.2 15.3 7.7 229.0 10.2
200 8” 219.1 8.18 STD 127.0 20.4 10.2 305.0 13.6
12.7 X.S 127.0 30.9 15.5 305.0 20.9
250 10” 273.9 9.27 STD 159.0 36.1 18.1 381.0 24.1
12.7 X.S 159.0 48.8 24.4 381.0 32.5
300 12” 323.9 9.52 STD 190.0 53.1 26.6 457.0 35.4
12.7 X.S 190.0 70.0 35.0 457.0 46.7
350 14” 355.6 9.52 STD 222.0 68.1 34.1 533.0 45.4
12.7 X.S 222.0 90.0 45.0 533.0 60.0
400 16” 406.4 9.52 STD 254.0 89.3 45.0 610.0 59.5
12.7 X.S 254.0 118.0 59.0 610.0 78.7
450 18” 457.0 9.52 STD 286.0 113.0 56.5 686.0 75.6
12.7 X.S 286.0 150.0 75.0 686.0 100.0
500 20” 508.0 9.52 STD 318.0 140.0 85.0 762.0 93.5
12.7 X.S 318.0 186.0 112.5 762.0 124.0
600 24” 610.00 9.52 STD 381.0 203.0 101.5 914.0 135.0
12.7 X.S 381.0 269.0 134.5 914.0 179.0

Buttweld Tee and Cap
Nominal Size
Pipe Tee and Cap Wall
Thickness T
Pipe Tee and Cap Outside
Diameter Y
Buttweld Cap
End to End
Buttweld Cap
Weight
Buttweld Tee
Dimensions
(C and M)
Buttweld Tee
Weight
mm in mm Schedule mm mm kg mm mm
15 1/2” 2.78 STD 21.3 25.4 0.58
3.73 X.S 25.4 0.21
20 3/4” 2.87 STD 26.7 28.6 0.21
3.91 X.S 28.6 0.27
25 1” 3.38 STD 33.4 38.1 0.1 38.1 0.34
4.55 X.S 38.1 0.14 38.1 0.43
32 11/4” 3.56 STD 42.2 38.1 0.14 47.6 0.64
4.85 X.S 38.1 0.18 47.6 0.75
40 11/2” 3.68 STD 48.3 38.1 0.18 57.1 0.95
5.08 X.S 38.1 0.23 57.1 1.13
50 2” 3.91 STD 60.3 38.1 0.27 63.5 1.45
5.54 X.S 38.1 0.32 63.5 1.72
65 21/2” 5.16 STD 73.0 38.1 0.41 76.2 2.45
7.01 X.S 38.1 0.45 76.2 2.95
80 3” 5.49 STD 88.9 50.8 0.64 85.7 3.45
7.62 X.S 50.8 0.82 85.7 4.3
100 4” 6.02 STD 114.3 63.5 1.13 105.0 5.7
8.56 X.S 63.5 1.54 105.0 7.3
125 5” 6.65 STD 141.3 76.2 1.91 124.0 9.1
9.5 X.S 76.2 2.59 124.0 11.8
150 6” 7.11 STD 168.3 88.9 2.95 143.0 13.6
10.97 X.S 88.9 4.1 143.0 19.0
200 8” 8.18 STD 219.1 101.6 5.0 178.0 25.0
12.7 X.S 101.6 7.3 178.0 33.5
250 10” 9.27 STD 273.0 127.0 9.1 216.0 41.0
12.7 X.S 127.0 12.0 216.0 54.0
300 12” 9.52 STD 323.9 152.4 13.6 254.0 57.0
12.7 X.S 152.4 17.0 254.0 77.0
350 14” 9.52 STD 355.6 165.1 15.9 279.0 73.0
12.7 X.S 165.1 21.0 279.0 93.0
400 16” 9.52 STD 406.4 178.8 20.0 305.0 91.0
12.7 X.S 178.8 26.0 305.0 120.0
450 18” 9.52 STD 457.0 203.2 26.0 343.0 127.0
12.7 X.S 203.2 34.0 343.0 165.0
500 20” 9.52 STD 508.0 228.6 33.0 381.0 227.0
12.7 X.S 228.6 43.0 381.0 270.0
600 24” 9.52 STD 610.0 266.7 46.0 432.0 345.0
12.7 X.S 266.7 61.0 432.0 430.0

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.9 Buttweld Pipe Fittings. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Buttweld Elbow. Concentric Reducer are provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Reducing Cross Pipe Fittings.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.9 Seamless and Welded Pipe Fittings with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our 45 Degree, 90 Degree, and 180 Degree Elbows and Pipe Bends.
  • As leading exporters and suppliers we keep a buffer stock of Pipe Fittings in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • Pipe Fittings (Buttweld Elbow, Tee, Reducers, Cross, Bends, End Caps, Stub End, Nipple, Collar) are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Buttweld Pipe Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on pipe fittings.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Pipe Fittings in India.

In Stock Products of Buttweld Pipe Fittings

ASME B16.9 Buttweld Fittings Manufacturing Standards

American Steel Pipe Fittings Standard
Standard Code Standard Name
MSS SP-75 Forging butt-welding fittings
MSS SP-43 Wrought stainless steel butt-welding fittings
ISO 5251 Stainless steel butt-welding fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME SA-403 Forged Durimet pipe fittings
German Steel Pipe Fittings Standard
DIN 2617 Steel butt-welding pipe fittings.caps
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings

ASME B16.9 Pipe Fittings Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.9 Pipe Fittings Applications and Uses

Ready Stock of ASME B16.9 Pipe Fittings in India

Wrought Austenitic Pipe Fittings ASTM A403 Eccentric Reducer
6 Inch Buttweld Pipe Fittings Reducing Nipple
Seamless Buttweld Fittings Sch 80 Pipe Fittings
Eccentric Reducer ASME B16.9 10D Elbow
Two Joint Pipe Fittings LR Elbow
Wrought Austenitic 45 Deg. Elbow Welded Pipe Fittings
90° LR Elbow Seamless Pipe Fittings
90° Weldable SR Elbow Pipe Reducers
ASME B16.9 90° Reducing Elbow Welded Pipe Fittings
MSS SP-43 Stub End ASME B16.28 Caps
Pipe Fittings Manufacturer Two Joint Pipe Fittings
Reducing Tee Lateral Tee Dealer
Sch 10 Concentric Reducer Welded Pipe Fittings Exporter
Pipe Bends Pipe Elbow
180° LR Return Bend Seamless Reducing Tee
Seamless Fittings 1D/3D/5D Bends
Weldable 1.5D Elbow, Bends Two Halve Butt weld Fittings
Stub End Exporter 1 Inch Pipe Fittings
Sch 80 Eccentric Reducer Industrial Buttweld Pipe Fittings
ANSI B16.9 Pipe Cap Weldable 3D Elbow
180° Buttweld Elbow Lap Joint Stub Ends Supplier
45° Long Radius Elbow Short Radius Elbow Stockists
90° Seamless Elbow Dealer Pipe Fittings Stockist
Pipe Fittings Manufacturer in India Butt weld Pipe Fittings Supplier in Mumbai
Pipe Fittings Dimensions Buttweld Reducing Nipple
Equal Cross at Best Price End Pipe Cap

ASME B16.9 Buttweld Fittings Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ASME B16.9 Pipe Fittings Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ASME B16.9 Pipe Fittings.

WE ARE OFFERING BUTTWELD FITTINGS AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
