We are one of the most important manufacturers, Suppliers, and Exporters of Buttweld 180° Pipe Elbows, which also are referred to as ‘return elbows’, functioning to vary the direction of the flow through a 180° angle. These Buttweld 180 Degree Elbows also are available in customized sizes that give more elasticity and simple handling within the process and control systems. Efficient to work under a variety of maximum and fluctuating temperatures. These 180 Degree elbow fittings are utilized in areas having more spaces for pipes than 180 degrees, they turn the entire angle of orientation of the pipes joined together by 180 degrees. The capacity of a Buttweld 180° Elbow is to vary course or move through Buttweld 180 Degree Elbow and there are two essential sorts, short sweep, and long-range.

Buttweld 180 Degree Elbow or also called a return bend allows complete reversal of flow. the space between the highest of the elbow and centerline is 3 x NPS. These Elbows are treated with Shot blasting and rust-proof black oil to spice up their finishing and resistance against surface abrasion. Prices for 180 Degree Pipe Elbow Buttweld Fittings are very reasonable. We’ve earned an unmistakable name within the design of 180° Elbow fittings.

Largest Stockist of ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Buttweld 180 Degree Elbow, ASME B16.9 Welded 180° Short Radius Elbow, Industrial Welded 180° Long Radius Elbow in Mumbai.

Most Trusted Exporters of Wrought Austenitic Buttweld 180 Degree Pipe Elbow in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.9 Buttweld 180 Degree Elbow Specifications

Specifications

ASME SA403, SA234, SA420 / ASTM A403, A234, A420

Standards / Dimensions

ASME/ANSI B16.9, MSS-SP-43, ASME B16.28

Size & Thickness

½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS.

ASME B16.9 Buttweld 180° Elbow Specifications
Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type

Seamless, Welded, Fabricated

Forms

180 Degree Long Radius Elbow, 180 Degree Short Radius Elbow

Leading Manufacturers of Different Types of ASTM A403 Stainless Steel Buttweld Pipe Fittings in the form of 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | Long Radius Ebow (LR Ebow) | Short Radius Elbow (SR Elbow) | 1D Elbow | 3D Elbow/Bend | 5D Elbow/Bend | Equal Tee | Unequal/Reducing Tee | Concentric Reducer | Eccentric Reducer | Equal Cross | Unequal/Reducing Cross | Long Stub End | Short Stub End | Lap Joint Stub End | End Caps | Seamless Fittings | Welded Fittings | 10D Pipe Bend | Long Radius Pipe Bend | Hot Induction Pipe Bend | J Pipe Bend | Mitered Pipe Bend | Piggable Pipe Bend | U Pipe Bend at Best Prices in India.

ASME B16.9 Buttweld 180 Degree Elbow Types

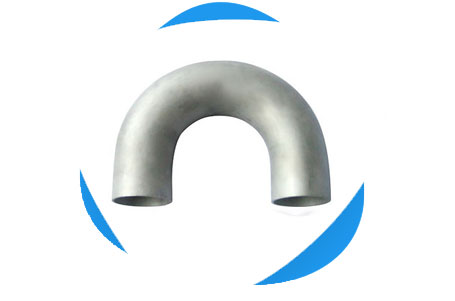

ASME B16.9 180 Degree Long Radius Elbow

ANSI B16.9 180° Long Radius Elbow, ASME B16.9 180° LR Elbow Supplier in Mumbai, India

ASME B16.9 180 Degree Long Radius Elbow

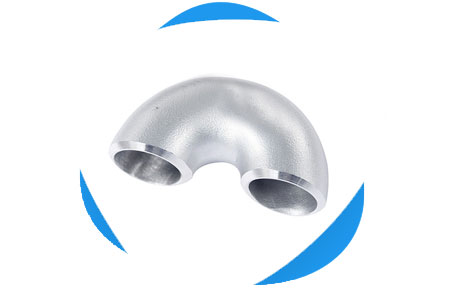

ASME B16.9 180 Degree Short Radius Elbow

ANSI B16.9 180° Short Radius Elbow, ASME B16.9 180° SR Elbow Supplier in Mumbai, India

ASME B16.9 180 Degree Short Radius Elbow

ASME B16.9 Buttweld 180 Degree Elbow Dimensions

ASME B16.9 Buttweld 180 Degree Elbow Dimension
Nominal Pipe size Outside Diameter
at Bevel
Center to Center Back to Faces
180° Return
P K
DN INCH Series A Series B LR SR LR SR
15 1/2 21.3 18 76 48
20 /4 26.9 25 76 51
25 1 33.7 32 76 51 56 41
32 11/4 42.4 38 95 64 70 52
40 11/2 48.3 45 114 76 83 62
50 2 60.3 57 152 102 106 81
65 21/2 76.1(73) 76 191 127 132 100
80 3 88.9 89 229 152 159 121
90 31/2 101.6 267 178 184 140
100 4 114.3 108 305 203 210 159
125 5 139.7 133 381 254 262 197
150 6 168.3 159 457 305 313 237
200 8 219.1 219 610 406 414 313
250 10 273.0 273 762 508 518 391
300 12 323.9 325 914 610 619 467
350 14 355.6 377 1067 711 711 533
400 16 406.4 426 1219 813 813 610
450 18 457.2 478 1372 914 914 686
500 20 508.0 529 1524 1016 1016 762
550 22 559
  • 180 Degree Elbows – It is used when change in the direction of pipe required is 180°
  • 180 Degree Elbows – It is used when change in the direction of pipe required is 180°
  • L/R – Long radius, S/R – Short radius
600 24 610 630
650 26 660
700 28 711 720
750 30 762
800 32 813 820
850 34 864
900 36 914 920
950 38 965
1000 40 1016 1020
1050 42 1067
1100 44 1118 1120
1150 46 1168
1200 48 1220 1220

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strives for quality production of ASME B16.9 Buttweld 180 Degree Elbow. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Buttweld 180 Degree Elbow. 180 Degree Long Radius Elbow are provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Reducing Cross Pipe Fittings.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.9 Seamless and Welded Pipe Fittings with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. To maintain reliability and quality of our 180 Degree Elbows and Pipe Bends.
  • As leading exporters and suppliers we keep a buffer stock of Pipe Fittings in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS To meet the off-hand requirement of our clients.
  • 180 Degree Short Radius Elbow Pipe Fittings are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Buttweld Pipe Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on pipe fittings.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Pipe Fittings in India.

ASME B16.9 Buttweld 180 Degree Elbow Material & Grades

Stainless Steel Buttweld 180° Elbow
ASTM A403 WP Gr. 304, 304L, 304H, 310, 316, 316L, 316H, 316Ti, 317L, 321, 347, 904L
Carbon Steel Buttweld 180° Elbow
ASTM A234 WPB, WPBW, WPHY 70, WPHY 65, WPHY 60, WPHY 52, WPHY 46, & WPHY 42.
Low Temperature Buttweld 180° Elbows
ASTM A420 WPL6, ASTM A420 WPL3
Alloy Steel Buttweld 180° Elbow
ASTM / ASME A/SA 234 Gr. WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex & Super Duplex Steel Buttweld 180° Elbow
ASTM A815, ASME SA815 UNS NO S31803, UNS NO S32205, UNS S32750, UNS S32950. Werkstoff No. 1.4462
Nickel Alloy Buttweld 180° Elbow
UNS 10276 (HASTELLOY C 276), UNS 6625 (INCONEL 625), UNS 6601 (INCONEL 601), UNS 6600 (INCONEL 600), UNS 8825 (INCONEL 825), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 4400 (MONEL 400), UNS 2201 (NICKEL 201), ASTM / ASME SB 336 UNS 2200 (NICKEL 200)

ASME B16.9 Buttweld 180° Elbow Weight Chart

NPS
inches
ELBOWS LR 180°
Sch.
5S
Sch.
10S
Sch.
40S
Sch.
80S
1 0.09 0.15 0.18 0.20
1/2 0.05 0.06 0.08 0.10
3/4 0.06 0.07 0.09 0.11
1 1/4 0.13 0.20 0.25 0.35
1 1/2 0.18 0.30 0.40 0.50
2 0.30 0.50 0.70 0.90
2 1/2 0.60 0.85 1.35 1.80
3 0.90 1.30 2.00 2.90
4 1.40 2.00 4.00 5.90
5 2.90 3.60 6.50 9.70
6 4.00 5.00 10.5 16.0
8 7.40 10.0 21.5 33.5
10 13.6 16.8 38.5 52.5
12 23.4 27.0 59.0 79.0
14 29.0 35.0 70.0 94.0
16 41.3 47.0 95.0 125
18 51.8 59.0 120 158
