ASME B16.9 Buttweld 1D Elbow Supplier, 1.5D Elbow, 3D Elbow, 5D Elbow Manufacturer in India

ASME B16.9 Buttweld 1D/1.5D/3D/5D Elbow Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is one of the leading Manufacturer, Suppliers & Exporters of high-quality Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow in India. We Manufacture ANSI B16.9 3D Elbow in various Sizes, Materials, and Standards like ANSI, ASME, DIN. we have experienced in Producing ASME B16.9 Buttweld 5D Elbow using high-quality raw materials and using the most recent machinery & under the guidance of experts. we provide our customers the foremost effective quality of 1D Elbow. Buttweld 1D Elbows introduced between two lengths of pipe to permit a change of direction, normally a 45 D or 90 D Elbows are made.

The Buttweld 1D Elbow is best for pipe fittings, choosing this increased lifetime of your application even these are available at the foremost reasonable rates. Buttweld 1.5 D Elbow, in International standard the NPS is 10, The radius length is 10*1. 5, that’s 15 inches (ca. 38 cm). If by mm it’s 15*25. 4, which is 381 mm. Each includes a smoother curve than an SR or LR. centerline radius is calculated supported diameter and variety that precedes it. As an example, a 10″ 3 D features a 30″ center line radius. 3D Elbow is typically related to bending radii. 3 D Elbows are sometimes needed to be cut within the world to odd angles to vary the direction of the pipeline. The Radius of a 5 D Elbow is basically what’s Five times the nominal diameter. it’s the radius of bend of the 5 D Elbow with reference to a degree, the purpose is determined by the intersection of two lines from the elbows’ socket end.

Largest Stockist of ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 Buttweld 1.5D Elbow, ASME B16.9 Welded 5D Elbow, Industrial 3D Elbow, Buttweld 1D Elbow in Mumbai.

Most Trusted Exporters of Wrought Austenitic Buttweld 1D Pipe Elbow, 1.5D Pipe Elbow, 3D Pipe Elbow, 5D Pipe Elbow in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.9 Buttweld 1D Elbow Specifications

Specifications

ASME SA403, SA234, SA420 / ASTM A403, A234, A420

Standards / Dimensions

ASME/ANSI B16.9, MSS-SP-43, ASME B16.28

Size & Thickness

½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS.

ASME B16.9 Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow Specifications
Bending Radius

R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type

Seamless, Welded, Fabricated

Forms

1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow

Leading Manufacturers of Different Types of ASTM A403 Stainless Steel Buttweld Pipe Fittings in the form of 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | Long Radius Ebow (LR Ebow) | Short Radius Elbow (SR Elbow) | 1D Elbow | 3D Elbow/Bend | 5D Elbow/Bend | Equal Tee | Unequal/Reducing Tee | Concentric Reducer | Eccentric Reducer | Equal Cross | Unequal/Reducing Cross | Long Stub End | Short Stub End | Lap Joint Stub End | End Caps | Seamless Fittings | Welded Fittings | 10D Pipe Bend | Long Radius Pipe Bend | Hot Induction Pipe Bend | J Pipe Bend | Mitered Pipe Bend | Piggable Pipe Bend | U Pipe Bend at Best Prices in India.

ASME B16.9 Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow Types

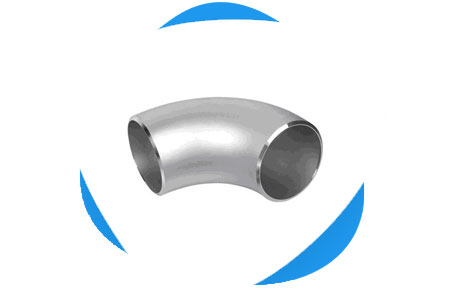

ASME B16.9 Buttweld 1D Elbow

ANSI B16.9 Buttweld 1D Elbow, ASME B16.9 Buttweld 1D Elbow Supplier in Mumbai, India

ASME B16.9 Buttweld 1D Elbow

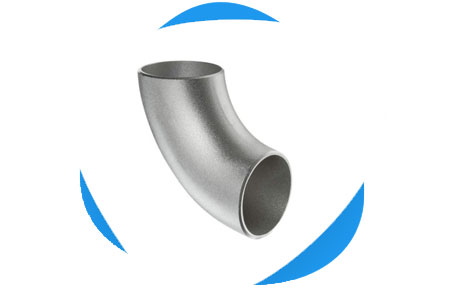

ASME B16.9 Buttweld 1.5D Elbow

ANSI B16.9 Buttweld 1.5D Elbow, ASME B16.9 Buttweld 1.5D Elbow Supplier in Mumbai, India

ASME B16.9 Buttweld 1.5D Elbow

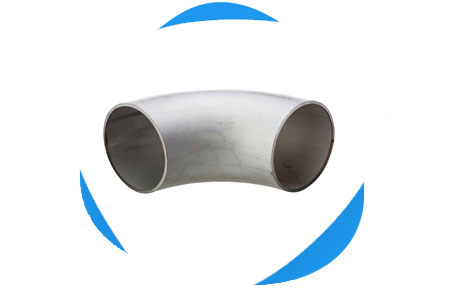

ASME B16.9 Buttweld 3D Elbow

ANSI B16.9 Buttweld 3D Elbow, ASME B16.9 Buttweld 3D Elbow Supplier in Mumbai, India

ASME B16.9 Buttweld 3D Elbow

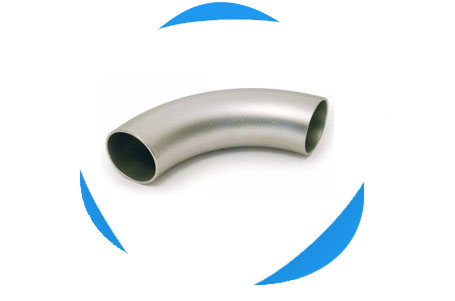

ASME B16.9 Buttweld 5D Elbow

ANSI B16.9 Buttweld 5D Elbow, ASME B16.9 Buttweld 5D Elbow Supplier in Mumbai, India

ASME B16.9 Buttweld 5D Elbow

ASME B16.9 Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow Dimensions

Size   Wall Thickness Radius Approx Weight (kg)
DN OD S A E
inch mm mm mm mm mm 90° 45°
Seamless
1 25 30 1.5 30 12 0.05 0.03
1¼ 32 38 1.5 32.5 14 0.08 0.03
1½ 40 44.5 1.5 40 17 0.14 0.06
2 50 57 1.5 52.5 22 0.20 0.10
2½ 65 76 2 70 29 0.46 0.23
3 80 89 2 82.5 34 0.64 0.32
4 100 108 2.5 100 41 1.16 0.58
5 125 133 2.5 125 52 1.80 0.90
6 150 159 2.5 150 62 2.60 1.30
7 175 194 3 180 75 3.80 1.90
8 200 219 3 210 87 6.00 3.00
10 250 267 3 255 106 8.88 4.44
12 300 324 4 305 126 17.10 8.55
14 350 368 4 352.5 146 22.60 11.30
16 400 419 4 400 166 32.80 16.40
18 450 457 4.5 457 189 40.90 20.45
20 500 508 5 508 210 56.20 28.10
24 600 610 5 610 253 81.00 40.50
28 700 711 6 711 295 132.00 66.00
32 800 813 6 813 337 173.00 86.50
36 900 914 8 914 379 291.00 145.50

Metric 90 Elbows Radius = 1.5D – in Type 316L and Type 304L

Inside Diameter Centreline Radius Wall Thickness Weight Per Piece
‘A’ mm ‘C’ mm ‘B’ mm kilos
15 30 1.50 0.03
20 35 1.50 0.04
25 32.5 1.50 0.06
32 45 1.50 0.11
40 60 1.50 0.20
50 73 2.00 0.31
65 95 2.00 0.52
80 123 2.00 0.77
100 150 2.00 1.20
100 150 3.00 1.79
125 188 2.00 1.88
150 225 2.00 2.69
150 225 3.00 4.09

NPS O.D (Outside Diameter) 90 degrees
3D/5D
Center-to-End
A		 45 degrees
3D/5D
Center-to-End
B
1/2 21.3 – –
3/4 26.7 57 24
1 33.4 76 31
1¼ 42.2 95 39
1½ 48.3 114 47
2 60.3 152 63
2½ 73 190 79
3 88.9 229 95
3½ 101.6 267 111
4 114.3 305 127
5 141.3 381 157
6 168.3 457 189
8 219.1 610 252
10 273 762 316
12 323.8 914 378
14 355.6 1067 441
16 406.4 1219 505
18 457 1372 568
20 508 1524 632
22 559 1676 694
24 610 1829 757
26 660 1981 821
28 711 2134 883
30 762 2286 964
32 813 2438 1010
34 864 2591 1073
36 914 2743 1135
38 965 2896 1200
40 1016 3048 1264
42 1067 3200 1326
44 1118 3353 1389
46 1168 3505 1453
48 1219 3658 1516

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.9 Buttweld 1D Elbow. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Buttweld 1.5D Elbow. 3D Pipe Elbow are provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Reducing Cross Pipe Fittings.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.9 Seamless and Welded Pipe Fittings with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our 5D Pipe Elbows and Pipe Bends.
  • As leading exporters and suppliers we keep a buffer stock of Pipe Fittings in all grades from ½” NB to 48” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • Buttweld 5D Elbow Pipe Fittings are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Buttweld 1D Elbow are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on pipe fittings.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Pipe Fittings in India.

ASME B16.9 Buttweld 1D/1.5D/3D/5D Elbows Material & Grades

Stainless Steel Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
ASTM A403 WP Gr. 304, 304L, 304H, 310, 316, 316L, 316H, 316Ti, 317L, 321, 347, 904L
Carbon Steel Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
ASTM A234 WPB, WPBW, WPHY 70, WPHY 65, WPHY 60, WPHY 52, WPHY 46, & WPHY 42.
Low Temperature Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
ASTM A420 WPL6, ASTM A420 WPL3
Alloy Steel Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
ASTM / ASME A/SA 234 Gr. WP1, WP5, WP9, WP11, WP12, WP22, WP91
Duplex & Super Duplex Steel Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
ASTM A815, ASME SA815 UNS NO S31803, UNS NO S32205, UNS S32750, UNS S32950. Werkstoff No. 1.4462
Nickel Alloy Buttweld 1D Elbow, 1.5D Elbow, 3D Elbow, 5D Elbow
UNS 10276 (HASTELLOY C 276), UNS 6625 (INCONEL 625), UNS 6601 (INCONEL 601), UNS 6600 (INCONEL 600), UNS 8825 (INCONEL 825), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 4400 (MONEL 400), UNS 2201 (NICKEL 201), ASTM / ASME SB 336 UNS 2200 (NICKEL 200)

ASME B16.9 Buttweld 5D Elbow Weight Chart

NPS
inches		 ELBOWS 1D/1.5D/3D/5D
Sch.
5S		 Sch.
10S		 Sch.
40S		 Sch.
80S
1 0.09 0.15 0.18 0.20
1/2 0.05 0.06 0.08 0.10
1 1/4 0.13 0.20 0.25 0.35
1 1/2 0.18 0.30 0.40 0.50
3/4 0.06 0.07 0.09 0.11
2 0.30 0.50 0.70 0.90
2 1/2 0.60 0.85 1.35 1.80
3 0.90 1.30 2.00 2.90
4 1.40 2.00 4.00 5.90
5 2.90 3.60 6.50 9.70
6 4.00 5.00 10.5 16.0
8 7.40 10.0 21.5 33.5
10 13.6 16.8 38.5 52.5
12 23.4 27.0 59.0 79.0
14 29.0 35.0 70.0 94.0
16 41.3 47.0 95.0 125
18 51.8 59.0 120 158
20 73.0 85.0 146 194
24 122 140 210 282

ASME B16.9 Buttweld 1.5D Elbow Manufacturing Standards

American Steel Pipe Fittings Standard
Standard Code Standard Name
MSS SP-75 Forging butt-welding fittings
MSS SP-43 Wrought stainless steel butt-welding fittings
ISO 5251 Stainless steel butt-welding fittings
ANSI ASME B16.28 Wrought steel butt-welding short radius elbows and returns
ANSI ASME B16.9 Factory-Made wrought steel pipe fittings
ANSI ASME SA-403 Forged Durimet pipe fittings
German Steel Pipe Fittings Standard
DIN 2617 Steel butt-welding pipe fittings.caps
DIN 2616 Steel butt-welding pipe fittings.reducers
DIN 2615 Steel butt-welding pipe fittings.tees
DIN 2605 Steel butt-welding pipe fittings.elbows and bends
Japanese Steel Pipe Fittings Standard
JIS B2311 Universal steel butt-welding pipe fittings
JIS B2313 Steel plate butt-welding pipe fittings
JIS B2312 Steel butt-welding pipe fittings
Other Steel Pipe Fittings Standard
EN 1025 3 Butt-welding pipe fittings

ASME B16.9 3D Elbow Pipe Fittings Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.9 3D Elbow Applications and Uses
