ASME B16.11 Threaded Fittings Supplier, Manufacturer in India

ASME B16.11 Threaded Forged Fittings Supplier, Manufacturer

Unichem Steel & Alloy Pvt. Ltd. is a reputed Manufacturers of Forged Threaded Fittings in India. Threaded joints probably represent the oldest methods of joining piping systems. Socket Weld Forged Fittings, Threaded Forged Fittings are mainly used for little pipe diameter, generally for piping whose nominal diameter is NPS 2 or smaller. The dimensional standard for taper pipe threads is given in ASME B1.20.1. That document gives the required dimension including a variety of thread per inch, pitch diameter, and normal engagement length for pipe diameter. Threaded piping is usually utilized in noncritical applications like fire protection, domestic water, and industrial cooling water system. Threaded Forged Fittings are normally made from cast gray or malleable cast brass, iron, bronze. All Screwed / Threaded Fittings are given NPT thread, The American National Pipe Thread Tapered, is that the simplest known and most generally used connection where the pipe thread provides both the mechanical joint. X Thread Series component has a tapered 10-32 Thread that functions kind of Pipe Thread. As compared to plain 10-32 UNF Threaded Fitting, the tapered design work better with oversized parts. Screw threads are designed to connect components together. They have a helical structure for converting linear and rotational force. the most purpose of the standardization of threads is to make sure compatibility and effective maintenance and repair.

Largest Stockist of ANSI/ASME B16.11 Threaded Fittings, Forged Threaded Elbow, Cross, Tee, Elbow, Lateral Tee, Pipe Nipple, Pipe Cap, Coupling, Union, Reducer Insert, Adapters, Boss, Hex Plug, Square Head Plug, Bull Plug in Mumbai.

Most Trusted Exporters of ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97 Threaded Forged Fittings in South Africa, Saudi Arabia, Spain, Kuwait, Singapore, Malaysia, UAE, Italy, Nigeria, Iraq, Thailand, Turkey, Vietnam, Oman, Qatar, Myanmar, Sri Lanka.

ASME B16.11 Threaded Fittings Specifications

Specifications

ASME SA182, SB564 / 160 / 472, SB 61/62/151/152, SA105/694/350 / ASTM A182, B564/160/472, B61/62/151/152, A105/A694/A350

Standards / Dimensions

ANSI/ASME B16.11, MSS SP-79, MSS-SP-95, 83, 97

Size & Thickness

1/8″~4″(DN6~DN100)

ASME B16.11 Threaded Fittings Specifications
Threaded Pressure Class

2000LBS, 3000LBS, 6000LBS, 9000LBS

Type

Threaded

Forms

Elbow, Tee, Cross, Full Coupling, Half Coupling, Elbow Outlet, Lateral Tee, Lateral Outlet, Branch Outlet, Pipe Cap, Union, Boss, Plug


Leading Manufacturers of Different Types of ASTM A182 Stainless Steel Threaded Fittings in the form of 45 Degree Elbow | 90 Degree Elbow | 180 Degree Elbow | Equal Tee | Unequal/Reducing Tee | Equal Cross | Unequal/Reducing Cross | End Caps | Full Coupling| Half Coupling | Pipe Cap | Union | Reducer Insert | Boss | Branch Outlet | Lateral Outlet | Elbow Outlet | Pipe Nipple | Adapters | Hex Plug | Square Head Plug | Bull Plug at Best Prices in India.

ASME B16.11 Threaded Fittings Types

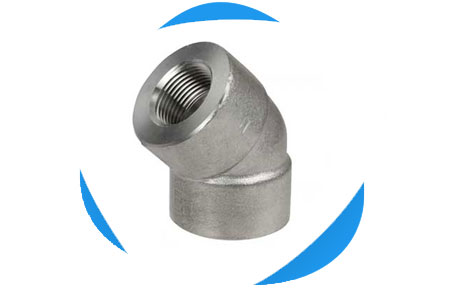

ASME B16.11 Threaded Elbow

ANSI B16.11 45° Elbow, ASME B16.11 90° Elbow, ASME B16.11 180° Elbow Supplier in Mumbai, India

ASME B16.11 Threaded Elbow

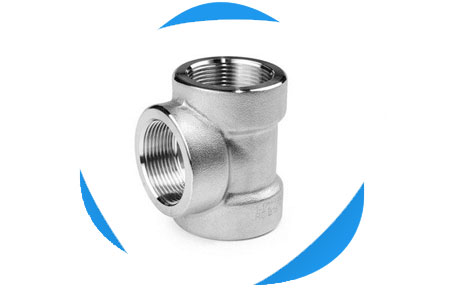

ASME B16.11 Threaded Tee

ANSI B16.11 Tee, Equal Tee, Unequal or Reducing Tee Supplier in Mumbai, India

ASME B16.11 Threaded Tee

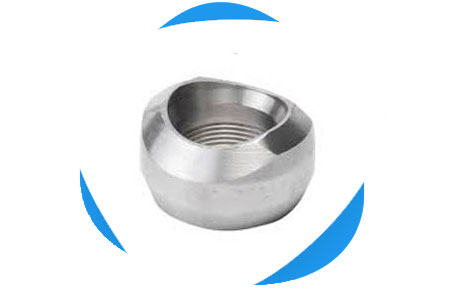

ASME B16.11 Threaded Branch Outlet

ANSI B16.11 Threaded Branch Outlet Supplier in Mumbai, India

ASME B16.11 Threaded Branch Outlet

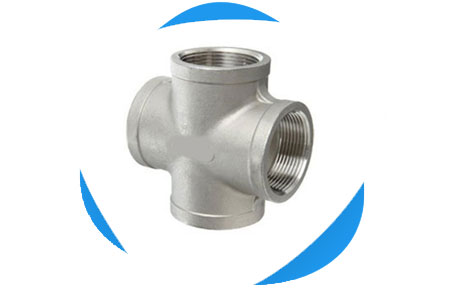

ASME B16.11 Threaded Cross

ANSI B16.11 Cross, Equal Cross, Unequal or Reducing Cross Supplier in Mumbai, India

ASME B16.11 Threaded Cross

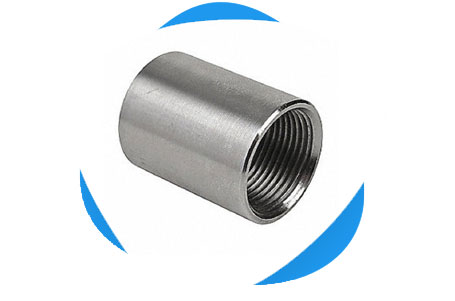

ASME B16.11 Threaded Coupling

ANSI B16.11 Threaded Full Coupling, Threaded Half Coupling Supplier in Mumbai, India

ASME B16.11 Threaded Coupling

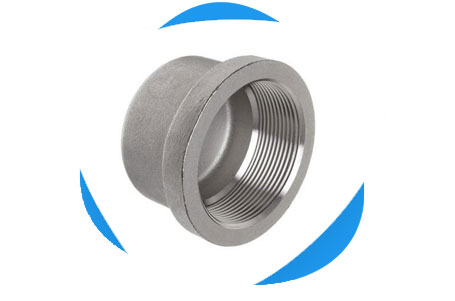

ASME B16.11 Threaded Pipe Caps

ANSI B16.11 End Caps, Ball Caps, Oval Caps Supplier in Mumbai, India

ASME B16.11 Threaded Pipe Caps

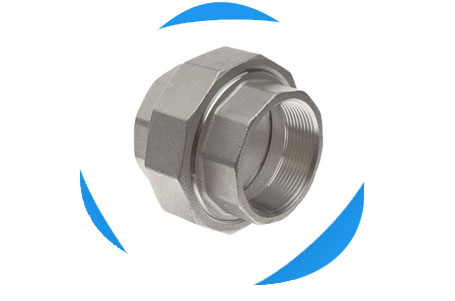

ASME B16.11 Threaded Union

ANSI B16.11 Threaded Union Supplier in Mumbai, India

ASME B16.11 Threaded Union

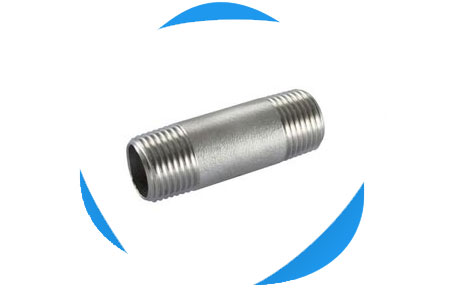

ASME B16.11 Threaded Nipple

ANSI B16.11 Threaded Pipe Nipple, Hex Nipple, Swage Nipple Supplier in Mumbai, India

ASME B16.11 Threaded Nipple

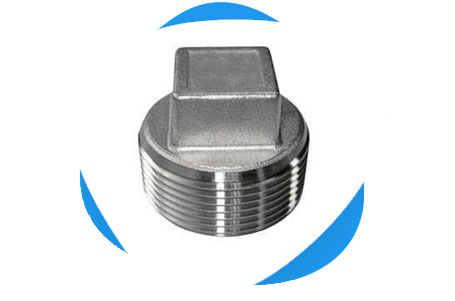

ASME B16.11 Threaded Plug

ANSI B16.11 Threaded Hex Plug, Square Head Plug, Bull Plug Supplier in Mumbai, India

ASME B16.11 Threaded Plug

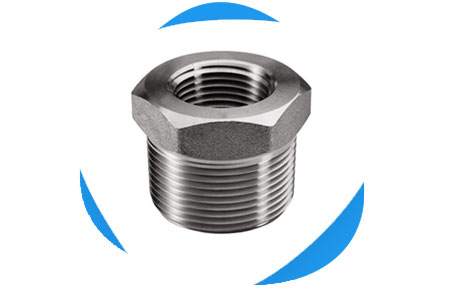

ASME B16.11 Threaded Bushing

ANSI B16.11 Threaded Bushing Supplier in Mumbai, India

ASME B16.11 Threaded Bushing

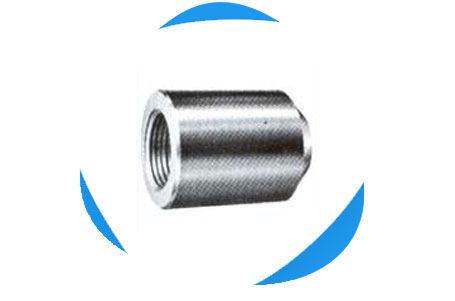

ASME B16.11 Threaded Boss

ANSI B16.11 Threaded Boss Supplier in Mumbai, India

ASME B16.11 Threaded Boss

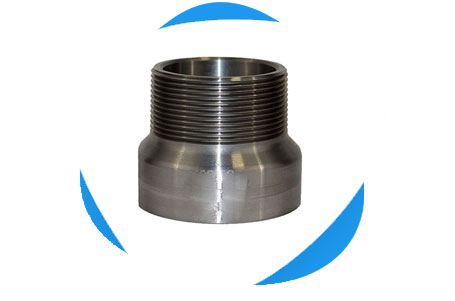

ASME B16.11 Threaded Adapters

ANSI B16.11 Threaded Adapters Supplier in Mumbai, India

ASME B16.11 Threaded Adapters

ASME B16.11 Threaded Forged Fittings Dimensions

DN Nom.
Pipe
Size
Center to End
Elbows.Tees.Cross
A
Center to End
45° Elbow
C
Outside Diameter
of Band
H
Minumum Wall
Thickness G
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93
32 1-1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59
40 1-1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07
50 2 60 64 83 43 44 52 75 86 102 4.27 7.14 12.09
65 2-1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29
85 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67

DN Nom.
Pipe
Size
End to End
Couplings
W
End to End
Caps
P
Outside
Diameter
D
End Wall
Thickness
G Min.
Length of
Thread.
Min.(1)
3000&6000 3000 6000 3000 6000 3000 6000 B L2
6 1/8 32 19 16 22 4.8 6.4 6.7
8 1/4 35 25 27 19 25 4.8 6.4 8.1 10.2
10 3/8 38 25 27 22 32 4.8 6.4 9.1 10.4
15 1/2 48 32 33 28 38 6.4 7.9 10.9 13.6
20 3/4 51 37 38 35 44 6.4 7.9 12.7 13.9
25 1 60 41 43 44 57 9.7 11.2 14.7 17.3
32 1-1/4 67 44 46 57 64 9.7 11.2 17.0 18.0
40 1-1/2 79 44 48 64 76 11.2 12.7 17.8 18.4
50 2 86 48 51 76 92 12.7 15.7 19.0 19.2
65 2-1/2 92 60 64 92 108 15.7 19.0 23.6 28.9
80 3 108 65 68 108 127 19.0 22.4 25.9 30.5
100 4 121 68 75 140 159 22.4 28.4 27.7 33.0

Dimensions of American Taper Pipe Thread, with Sealant Compound

DN-NPT Pitch
mm
TPI Major Diameter
mm
Tapping
Drill Size mm
1″ 2.209 11.5 33.228 28.50
1/16″ 0.941 27 7.895 6.00
1/8″ 0.941 27 10.242 8.25
1/4″ 1.411 18 13.616 10.70
3/8″ 1.411 18 17.055 14.10
1/2″ 1.814 14 21.223 17.40
3/4″ 1.814 14 26.568 22.60
1.1/4″ 2.209 11.5 41.985 37.00
1.1/2″ 2.209 11.5 48.054 43.50
2″ 2.209 11.5 60.092 55.00
2.1/2″ 3.175 8 72.699 65.50
3″ 3.175 8 88.608 81.50
3.1/2″ 3.175 8 101.316 94.30
4″ 3.175 8 113.973 107.00
5″ 3.175 8 141.300 134.384
6″ 3.175 8 168.275 161.191
8″ 3.175 8 219.075 211.673
10″ 3.175 8 273.050 265.311
12″ 3.175 8 323.850 315.793

Why Purchase From Unichem Steel & Alloy Pvt. Ltd.

  • Unichem Steel & Alloy Pvt. Ltd. strive for quality production of ASME B16.11 Threaded Pipe Fittings. We adequately test raw materials and confirm to ASTM, ASME, DIN, EN, JIS Standards to make the highest quality Threaded Elbow. Threaded Coupling is provided with 100% Radiography Test Report and Third Party Inspection or Buyer Inspection service is available on finished products.
  • Value Added Services are provided such as Epoxy & FBE coating, Sandblasting, Hot dipped galvanizing, Electropolish or other special finishes, Threading, soldering, Custom shape cutting, fabrication services on Threaded Reducing Cross Fittings.
  • Unichem Steel & Alloy Pvt. Ltd. is an expert in manufacturing of custom size ANSI B16.11 Threaded Forged Fittings with accurate dimensions and uniform wall thickness.
  • We are presently equipped with modern manufacturing equipment and inspection tools such as Lathe Machines, Milling Machine, Heating & Annealing Furnaces, forging and deep drawing presses, machining, finishing, and testing facilities. In order to maintain reliability and quality of our Threaded 45 Degree, 90 Degree, and 180 Degree Elbows.
  • As leading exporters and suppliers we keep a buffer stock of Threaded Fittings in all grades from ½” NB to 4” NB in Sch 10s, the 40s, 80s, 160s, XXS In order to meet the off-hand requirement of our clients.
  • Threaded Fittings (Threaded Elbow, Tee, Reducers, Cross, Coupling, End Caps, Union Nipple, Boss) are packaged to ensure that there is no damage during transit. In the case of exports, products are packed in wooden cases. All Threaded Pipe Fittings are marked with Size, Lot No, Grade, Degree, and our trademark. On special requests we make custom marking on Threaded fittings.
  • Test Certificates: Raw Materials Certificate, Manufacturer Test Certificate as per EN 10204 / 3.1B, Third Party Inspection Report, 100% Radiography Test Report.
  • No minimum quantity order limit. Get Market leading prices on all types of Threaded Forged Fittings in India.

Screwed / Threaded Fittings Technical Information

Materials
  • Nylon
  • Polypropylene
  • Polyvinylidene difluoride (PVDF)
Thread Styles
  • 10-32 UNF
  • 1/16 – 27 NPT
  • 1/8 – 27 NPT
  • 1/4 – 18 NPT
  • 1/4 – 28 UNF
  • 5 x .8 metric
  • 6 x 1 metric
  • Bottom-sealing
  • Other special thread types
Configurations
  • Straight
  • Elbow
  • Tee
Connector Styles
  • Plastic panel-mount connectors and bulkhead fittings
  • Thread-to-barb fittings
  • Threaded elbow connectors
  • Threaded tee fittings
  • Straight reducers, plugs, and couplers

ASME B16.11 Threaded Pipe Fittings Material & Grades

Stainless Steel Threaded Fittings
ASTM / ASME A/SA 182: F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Threaded Fittings
ASTM A105/A694/ A350 LF3/A350 LF2: F42, F46, F52, F56, F60, F65, F70
Alloy Steel Threaded Fittings
ASTM A182: F1, F5, F9, F11, F22, F91
Duplex & Super Duplex Steel Threaded Fittings
ASTM / ASME A/SA 182: F44, F45, F51, F53, F55, F60, F61.
Nickel Alloy Threaded Fittings
ASTM / ASME SB 564 / 160 / 472: UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400), UNS 8825 INCONEL (825), UNS 6600(INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276), UNS 2201 (NICKEL 201), (ALLOY 20 / 20 CB 3)

ASME B16.11 Screwed / Threaded Fittings Weight Chart

Size Qty Weight A B
¼ 160 0.20 0.81 0.88
½ 100 0.57 1.12 1.31
¾ 75 0.71 1.31 1.5
1 40 1.08 1.5 1.81
1 ¼ 25 1.68 1.75 2.19
1 ½ 18 2.38 2.00 2.44
2 10 3.55 2.38 2.97
2 ½ 4 6.22 3.00 3.62
3 2 10.36 3.38 4.31
4 1 23.91 4.19 5.75

In Stock Products of Forged Threaded Fittings

ASME B16.11 Threaded Fittings Manufacturing Standards

ASME Standard ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
EN Standard EN10253-2, EN10253-1
ASME B16.11 Threaded Fittings, Socket – Welding and Threaded
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Piping Threaded Fittings
MSS SP-95 Swage(d) Nipples and Bull Plugs

All Types of Threaded Fittings by Size, Class, and Wall Thickness

Description Class Designation
3000 6000 9000
Elbow 45 and 90 degree,
Tee, Cross, Coupling,
Half-Coupling,
End or Pipe Cap
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size
by Wall Thickness
SCH 80 / XS SCH 160 XXS

ASME B16.11 Threaded Fittings Applications and Uses

  • Power Plant / Power Generation
  • Fertilizers
  • Oil & Gas
  • Refineries
  • Chemical Industry
  • Pulp and Paper Industry
  • Petrochemicals
  • Engineering Project
  • Environmental and Water Projects
  • Boiler Manufacturers
  • Pumps and Valves
  • Cement Industries
  • Aerospace Industry
  • Nuclear Industry
  • Construction
  • Ship Building Companies
  • Thermal Processing
  • Pharma Industry
  • Off-Shore Oil Drilling Companies
ASME B16.11 Threaded Fittings Applications and Uses

ASME B16.11 Threaded Fittings Exporter

EUROPE: Albania, Austria, Belgium, Croatia, Czech Republic, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Malta, Netherlands, Norway, Portugal, Russia, Slovakia, Slovenia, Spain, Switzerland, UK, Ukraine.
ASIA: Bangladesh, Cambodia, India, Indonesia, Japan, Malaysia, Maldives, Myanmar, Singapore, South Korea, Sri Lanka, Taiwan, Thailand, Vietnam.
AFRICA: Algeria, Angola, Egypt, Equatorial Guinea, Gabon, Libya, Nigeria, South Africa, Sudan, The Republic Of Congo.
MIDDLE EAST: Bahrain, Cyprus, Iran, Iraq, Jordan, Kuwait, Oman, Qatar, Saudi Arabia (KSA), Syria, Turkey, United Arab Emirates (UAE), Yemen.
NORTH AMERICA: Bahamas, Canada, Costa Rica, Denmark, Jamaica, Mexico, Panama, Puerto Rico, Trinidad And Tobago, USA.
SOUTH AMERICA: Argentina, Bolivia, Brazil, Chile, Colombia, Ecuador, Guyana, Paraguay, Uruguay, Venezuela.

ASME B16.11 Threaded Fittings Supplier

Aberdeen, Abu Dhabi, Ahmedabad, Ahvaz, Al Jubail, Al Khobar, Algiers, Ankara, Atyrau, Bangkok, Bengaluru, Bhopal, Bogota, Brisbane, Busan, Cairo, Calgary, Caracas, Chandigarh, Chennai, Chiyoda, Coimbatore, Colombo, Courbevoie, Dallas, Dammam, Doha, Dubai, Edmonton, Ernakulam, Faridabad, Geoje-si, Gimhae-si, Granada, Gurgaon, Hanoi, Haryana, Ho Chi Minh City, Hong Kong, Houston, Howrah, Hyderabad, Indore, Istanbul, Jakarta, Jeddah, Karachi, Kolkata, Kuala Lumpur, Kuwait City, La Victoria, Lagos, Lahore, London, Los Angeles, Ludhiana, Madrid, Manama, Melbourne, Mexico City, Milan, Montreal, Moscow, Mumbai, Muscat, Navi Mumbai, New Delhi, New York, Noida, Perth, Petaling Jaya, Pimpri-Chinchwad, Port-of-Spain, Pune, Rajkot, Rio de Janeiro, Riyadh, Santiago, Secunderabad, Seoul, Sharjah, Singapore, Surat, Sydney, Tehran, Thane, Thiruvananthapuram, Toronto, Ulsan, Vadodara, Visakhapatnam, Vung Tau.

Contact us to get a quick quote for ASME B16.11 Threaded Fittings.

WE ARE OFFERING THREADED FITTINGS AS PER ISO, DIN, JIS OR ANSI STANDARD.

Request a Quote —>
